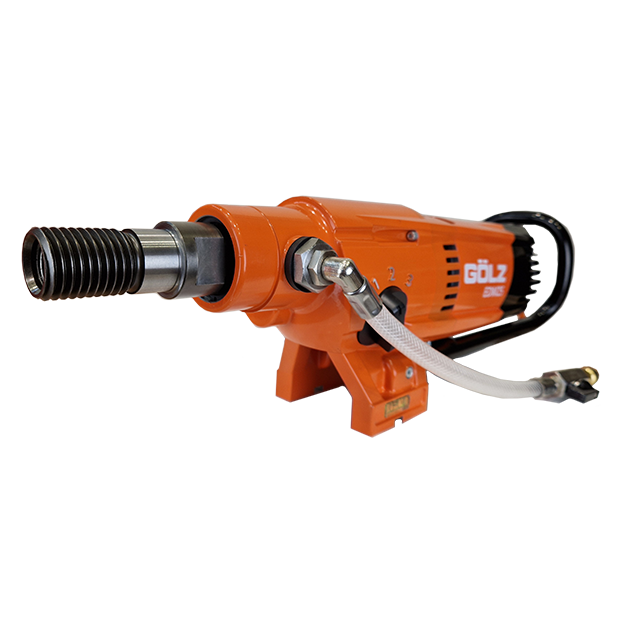

SD250 | EDM25
The professional choice for all
installation holes up to Ø 250 mm(10")
installation holes up to Ø 250 mm(10")
-
Max. Drill-Ø250 mm
-
Travel Length600 mm
-
Baseanchor-/vacuum base
-
Motor3-speed, 2,5 kW, 230 V
ltem number: EDM25 0295 125 9370 / SD250 0295 125 9300
-
FEATURES

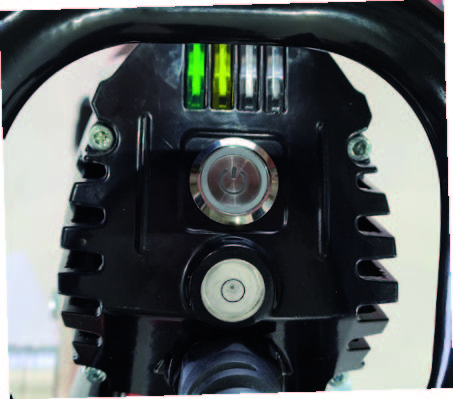

![LED display against overload]()
LED display against overload![Laser pointer]()

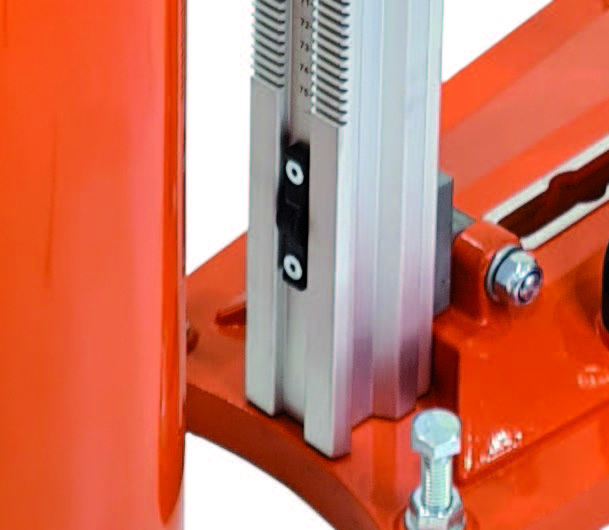

Laser pointer![PRCD]()

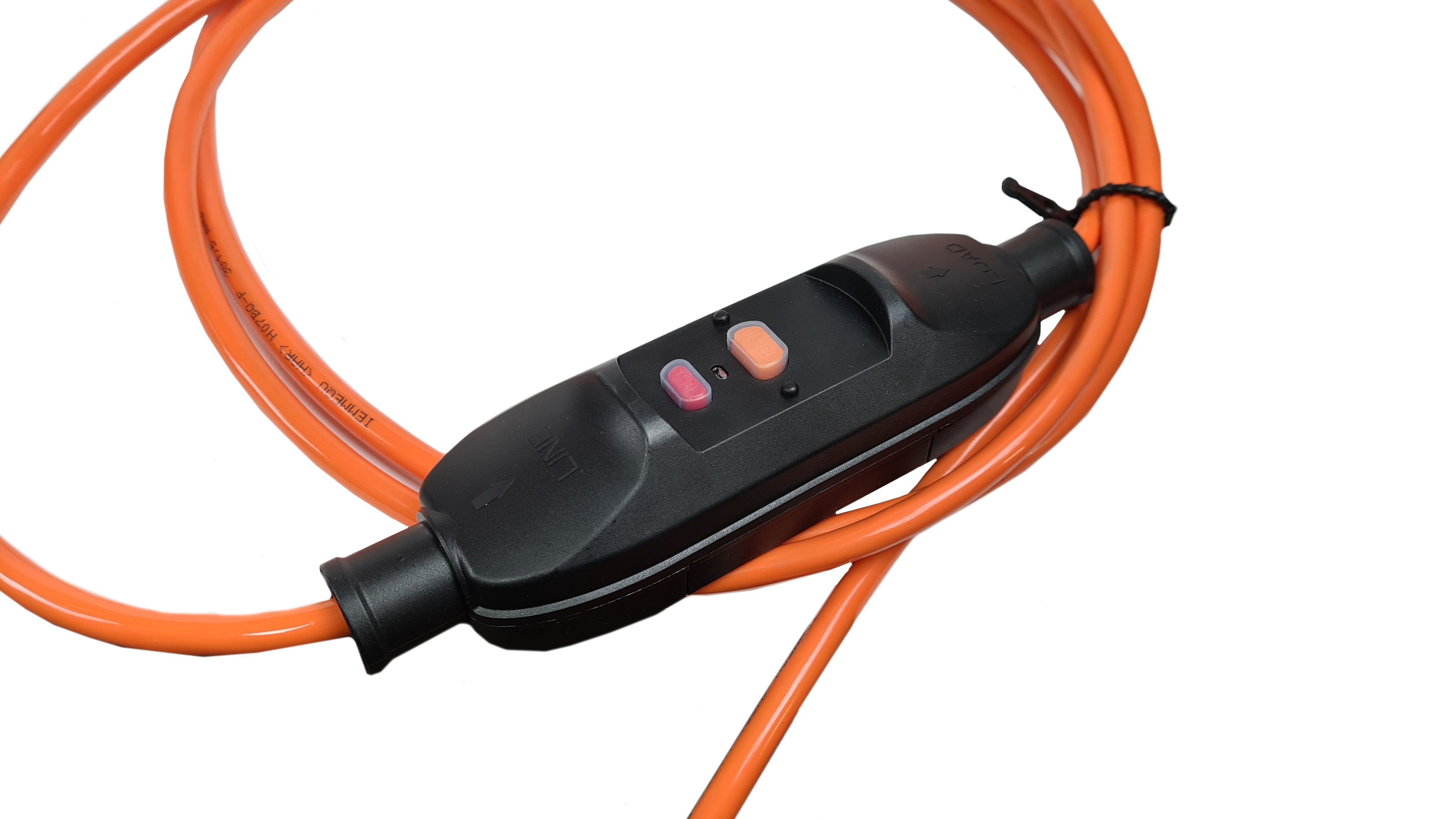

PRCD -
TECH DATA TABLEUser friendly and lightweight
Lightweight aluminum core drill stand with 3-speed drill engine
• Weight drill stand 10,5 kg (23 lbs)
• Weight drill motor 9 kg (19,8 lbs)
• Maximum diameter: 250 mm (10")
• Angle drilling device up to 45°
• Smooth-running sliding guide
• Motor quick release system
• Laserpointer - Adjust the Drill Stand to the corehole center
• Left and right handed operation
• Anchor-/vacuum base
• Travel length: 600 mm (24")
• Tool- and fastening kit included

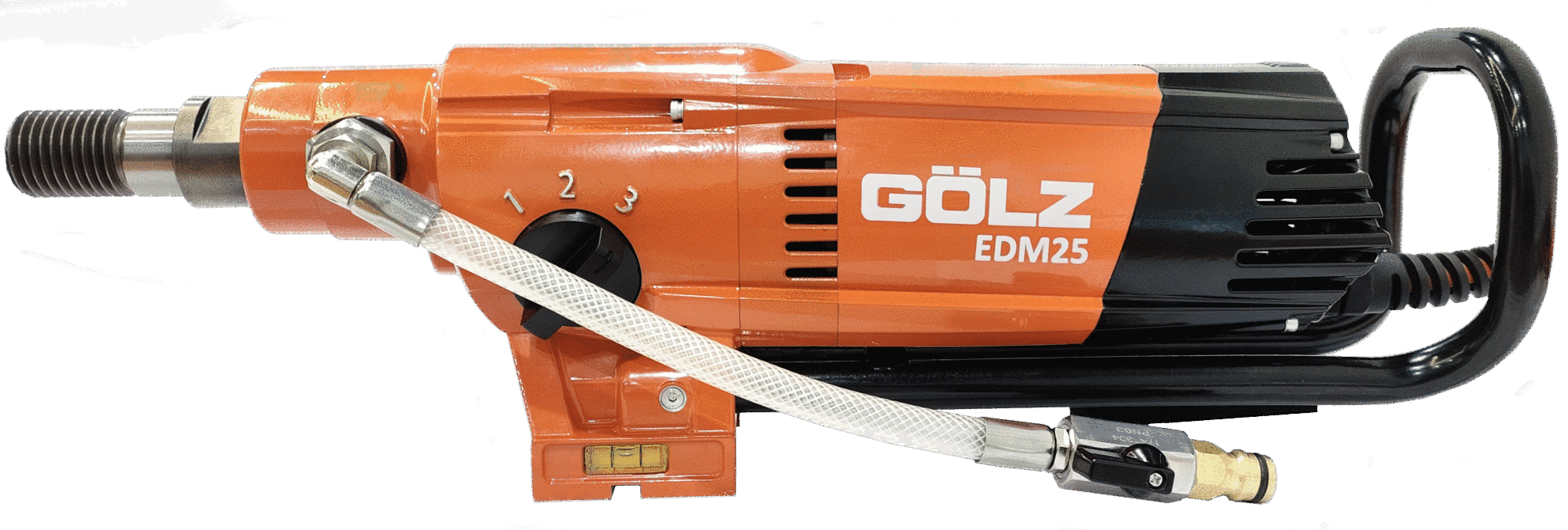

The Drill Motor EDM25 is equiped with:
• Soft Start Electronic
• Overload protection by ELC Electronic Clutch
• PRCD
• LED load display
SD250 with anchor-/vacuum base Drill bit connection 1¼” UNC Drill bit connection 1¼” UNC Complete with EDM25 EBL33L Power 2,5kW, 230V, 50-60Hz 2,5kW, 230V, 50-60Hz RPM 300/520/1700 min-1 300/520/1700 min-1 Drilling Ø Ø 20-250 mm Ø 20-250 mm Order number 0295 125 9370 0295 125 9330 Drill Stand SD250 without drill motor with motor quick release system and tool kit (without fastening kit),
anchor-/vacuum base, up to Ø 250 mm
Order number 0295 125 9300 -
Matching machines
-

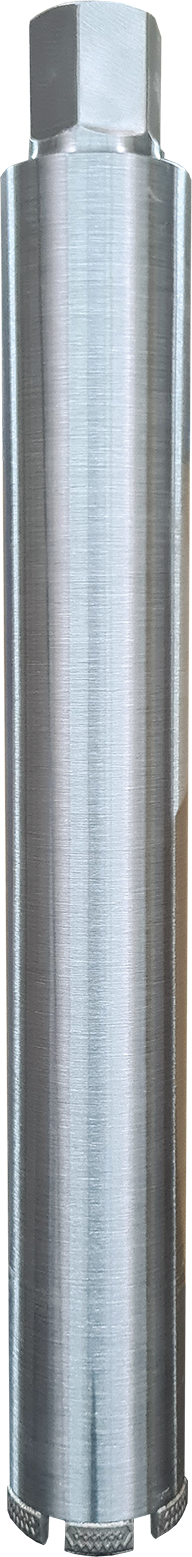

Diamond ToolsSuitable diamond tools – our recommendations
-
ACCESSORIESComplete your equipment
-
DOWNLOAD MANUAL
